How do I change the filters in my InovaAir AirClean Air Purifier?

Accessing the Filters

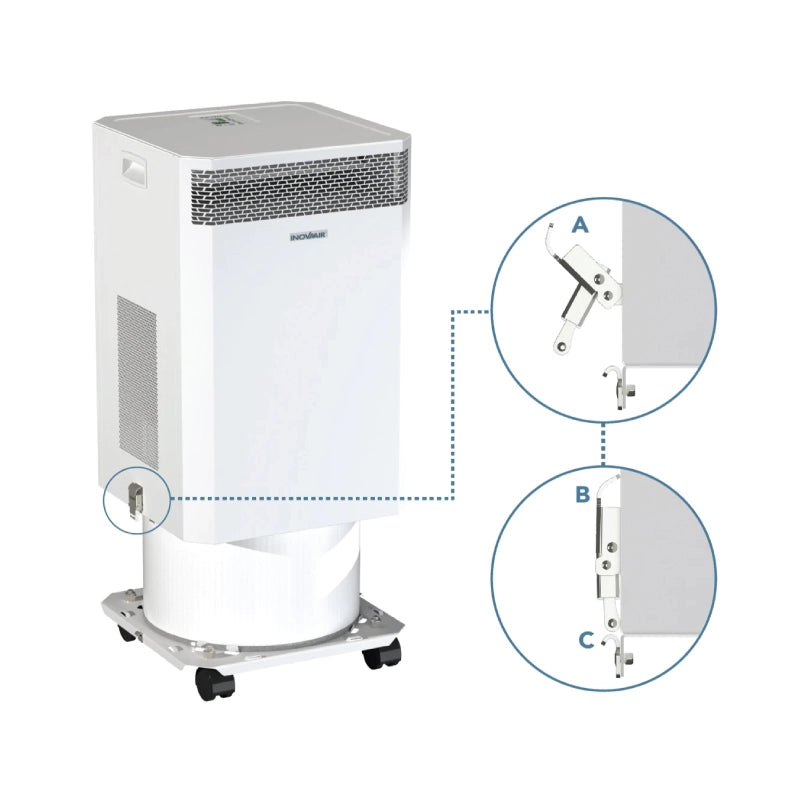

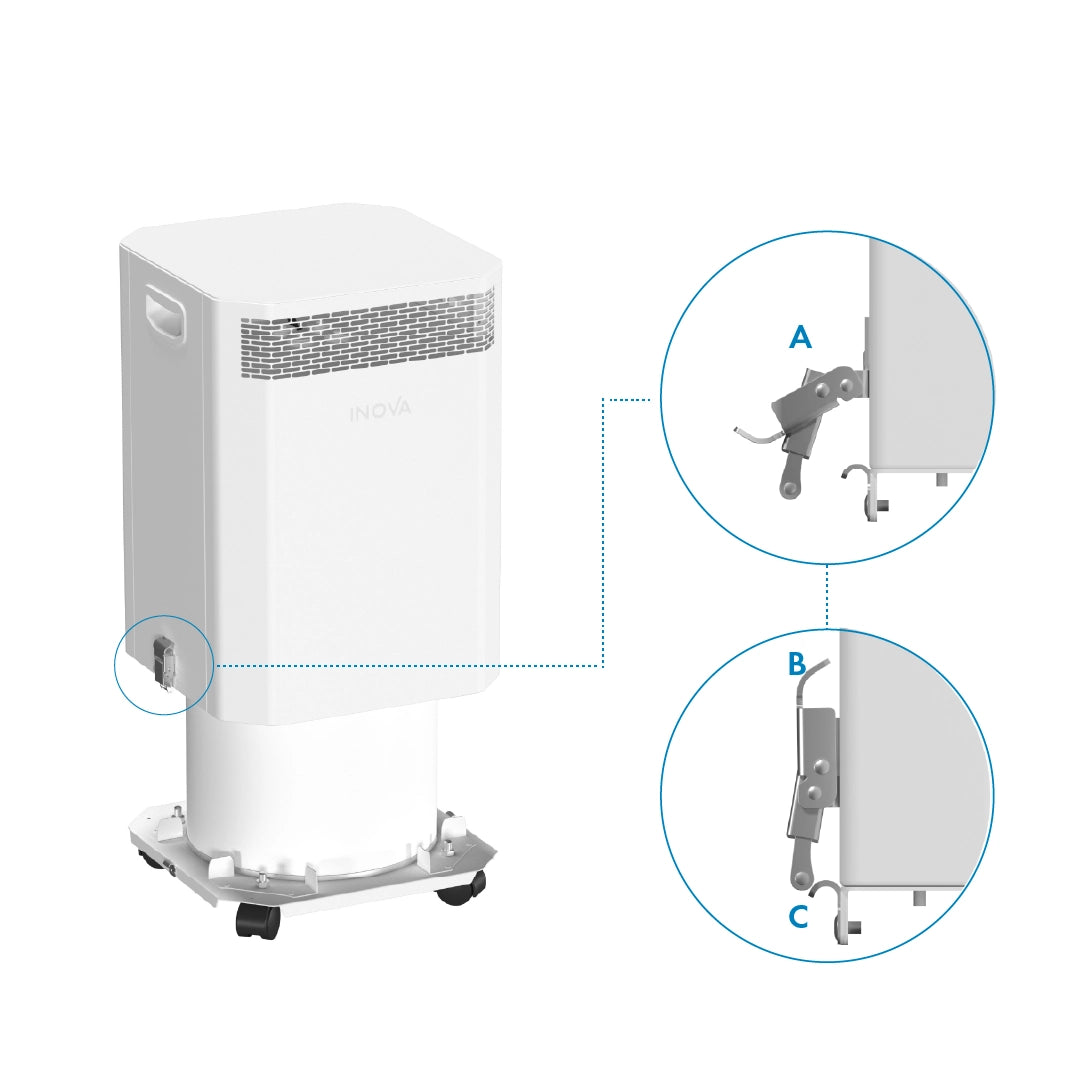

Accessing filters

  1. Disconnect the power cord.
  2. Ensure system is sitting on a flat and even surface.
  3. Pull top of the latches (A) away from the main unit on either side.
  4. Push the latches back towards the main unit (B)
  5. Ensure the latch clasps are clear of catches on the base (C).
  6. Lift casing clear of base to access filters.



AirClean E8 and E20/DE20 Plus Filters

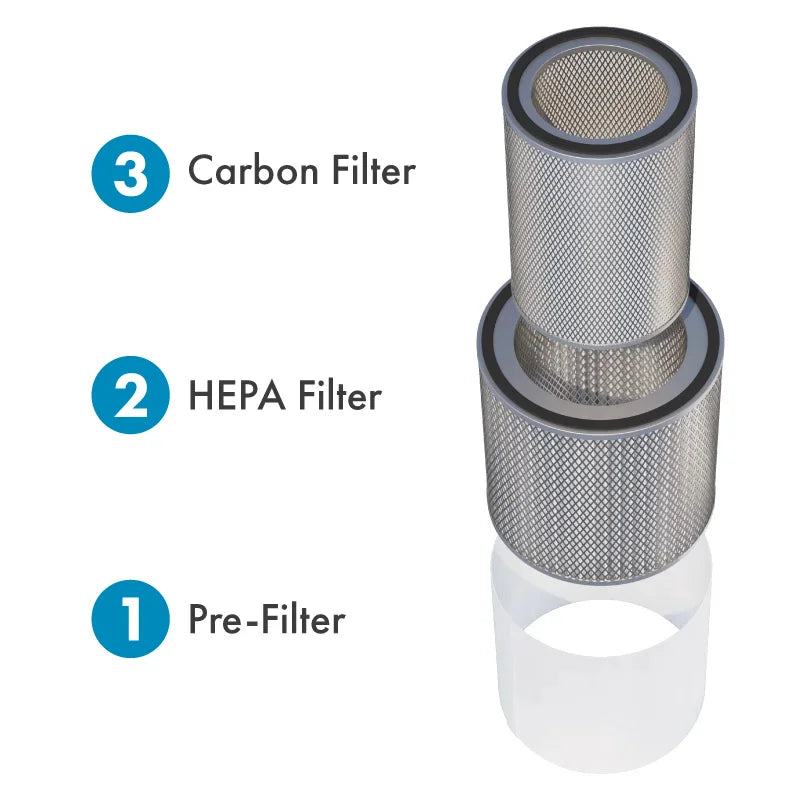

The filter set below represents the Pre-filter, HEPA, and Activated Carbon filters that come with our E8, E20 Plus, and DE20 Plus systems.

E8, E20 and DE20 Filter

 Order replacement filters

E8 Technostat Pre-filter

E8 HEPA filter

E8 2.4kg Activated Carbon filter


E20/DE20 Technostat Pre-filter.

E20/DE20 HEPA filter

E20/DE20 6kg Activated Carbon filter



  1. The pre-filter is wrapped around the HEPA filter & fastened with velcro. Gently unwrap from the existing filter & replace with the new pre-filter. If you suffer from dust allergies, we recommend taking the system outside before removing the pre-filter to avoid the possibility of dust being released in your environment. Alternatively wear a dust mask if performing this operation inside. Ensure pre-filter is installed so the ‘fluffy’ Velcro strip is facing outwards and is firmly fitted around the HEPA filter to avoid air bypassing the pre-filter. We recommend replacing the pre-filter at least every 6 months. In high dust environments the pre-filter may need changing more frequently.
  2. The HEPA filter is designed to last 3 to 5 years under normal use. Like with other filters the environment in which it is used will determine the filter life. The outside of the HEPA filter will change colour and turn grey when it needs changing. Generally for the first two years of use the filter will remain white and then gradually get darker in the final months of its life. Note: the inside of the HEPA filter will always remain white so it is important to check the outside of the filter which is visible when the pre-filter is being changed.
  3. The Activated Carbon filter can be effective for approx. 1-3 years depending on the level of chemicals & odours present. The life of this filter can be shortened if exposed to consistent high amounts of chemicals and odours. This filter should be changed when it is saturated, this means the filter has entirely adsorbed what it has filtered from the air during use. You can tell when a carbon filter needs changing because the air coming out of the air purifier will either be tainted with an odour of what it has adsorbed during use, or the air will simply stop smelling clean.





AirClean E7 Filters

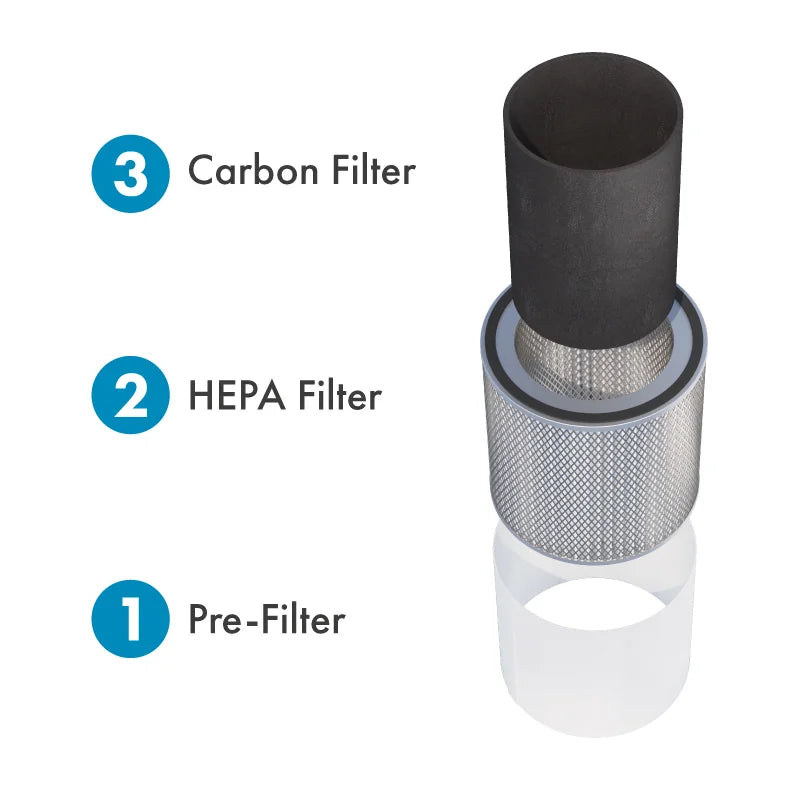

The filter set below represents the Pre-filter, HEPA, and Activated Carbon blanket filters that come with our E7 system.

E7 Filter



Order Replacement Filters

E7 Technostat Pre-filter.

E7 HEPA Filter

E7 Carbon-impregnated inner blanket.



  1. The pre-filter is wrapped around the HEPA filter & fastened with velcro. Gently unwrap from the existing filter & replace with the new pre-filter. If you suffer from dust allergies, we recommend taking the system outside before removing the pre-filter to avoid the possibility of dust being released in your environment. Alternatively wear a dust mask if performing this operation inside. Ensure pre-filter is installed so the ‘fluffy’ Velcro strip is facing outwards and is firmly fitted around the HEPA filter to avoid air bypassing the pre-filter. We recommend replacing the pre-filter at least every 6 months. In high dust environments the pre-filter may need changing more frequently.
  2. The HEPA filter is designed to last 3 to 5 years under normal use. Like with other filters the environment in which it is used will determine the filter life. The outside of the HEPA filter will change colour and turn grey when it needs changing. Generally for the first two years of use the filter will remain white and then gradually get darker in the final months of its life. Note: the inside of the HEPA filter will always remain white so it is important to check the outside of the filter which is visible when the pre-filter is being changed.
  3. The Activated Carbon blanket filter will be effective for 6-12 months. The life of this filter can be shortened if exposed to consistent high amounts of chemicals and odours. This filter should be changed when it is saturated, this means the filter has entirely filled up with whatever it has filtered from the air during use. You can tell when a carbon filter needs changing because the air coming out of the air purifier will either be tainted with an odour of what it has adsorbed during use, or the air will simply stop smelling clean or smell stale.
