Designed for commercial applications, the INOVA E600R is commonly used in the following high dust and chemical environments;
- Pharmaceutical
- Scientific laboratories
- Food production clean areas
- Solvent removal for wide format and UV flatbed printers & laser engravers
- Mining sites
- Control rooms
- Hospitals
Advantages
- Medical-grade H13 HEPA filter with 99.95% efficiency
- Interchangeable Filters
- Ducted or freestanding operation
- Lower energy costs with EC Fan
- Highest quality components
- All steel construction
- Create cleanroom environments
- High-capacity activated carbon filters for heavy-duty gas, solvent and VOC removal
Filters

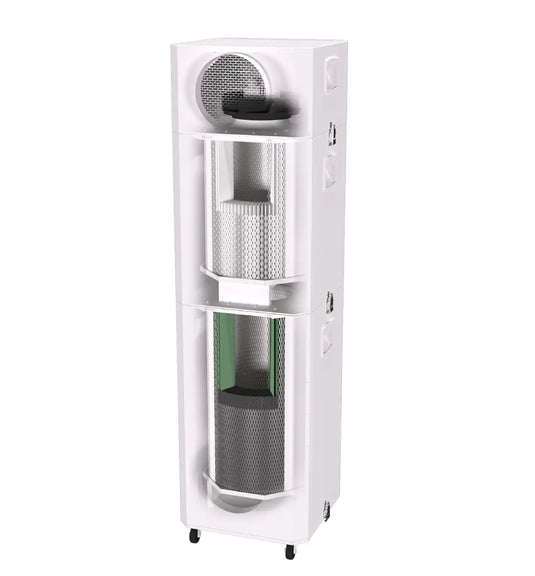

Can be configured with H13 Medical Grade HEPA or 14kg Activated Carbon Filter, with high-efficiency MERV11 pre-filter cartridge as standard.
Chemical filtration | The Chemical filter contains 14 kilograms of activated carbon. (Other gas filter media types are available upon request.) |
Pre-filter | Technostat Bag filter. High efficiency @ 0.3 microns with high dust-holding capacity. |
Specifications
Fan Capacity | 0 - 1200 m³/h |
Dimensions | W:40mm x D:40cm x H:161cm (fully assembled) |
Weight | 60 kgs including filters* |
Country of Manufacture | Australia |
Construction | Powder Coated Zinc Steel 20 gauge |
Power consumption | 16-162 Watts |
Power supply | 1-phase 220-240V, 50-60Hz |
Motor type | EC Centrifugal Fan (European), designed for continuous 24-hour operation (ball bearing maintenance-free) |
Speed Control | Speed control with potentiometer or connection to pulse width modulation (PWM) upon request |

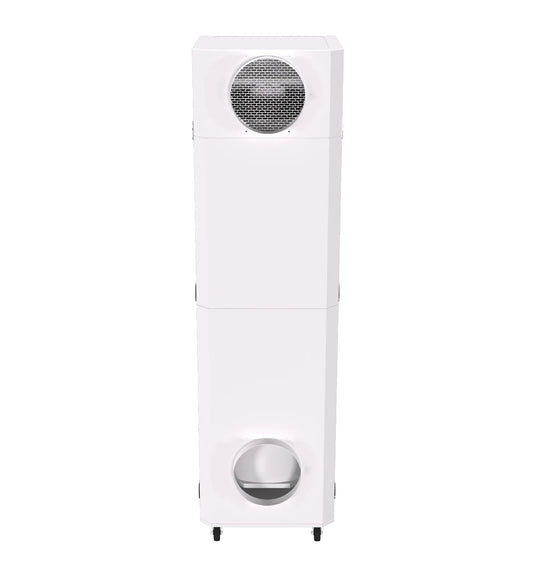

Connection | Intake and discharge single 200mm duct. Other ducting size options are available. |
Installation | Mobile or stationary. |
Operating Temp. | Min 0 ° C, Max +45 ° C |
Warranty | 1-year parts and labour**. |
Price | $5,889.00** |
Technical and other specifications are subject to change without notice.
*Weight will vary depending on filter configuration.
**Price may vary depending on filter and duct configuration; please contact us for exact pricing for your particular needs. Price excludes GST and delivery.
